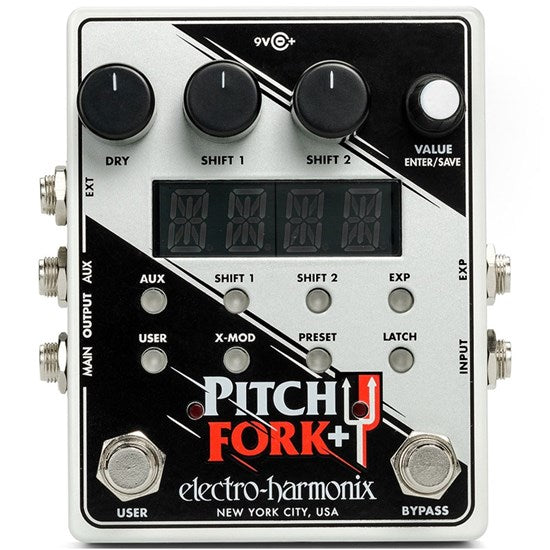

Electro-Harmonix Pitch Fork Plus - Polyphonic Pitch Shifter Pedal
690/PFPLUSThe Pitch Fork®+ features two independent pitch shifting engines with full control over each. Both will transpose your pitch up or down over a +/- three octave range and detune +/-99 cents. With rock solid tracking, an organic, musical tone and extensive control, it’s your ultimate harmoniser.
A Bypass footswitch toggles between effect on and buffered bypass. In latch mode it switches between effect and bypass mode. In Momentary mode the effect is on when the FS is held down and the pedal enters bypass when it’s released.
The User footswitch is programmable and can be assigned to a variety of functions such as muting either Shift voice or jumping to a preset program. It features a dedicated LED. The EXP input offers EXP or CV control over a broad selection of parameters in three sub-menus: Frequency, Glissando and Volume.
The EXT input connects external foot controllers like EHX’s Triple Foot Controller which enables players to change modes, enter/exit sub-menus and load presets. The unit has eight modes, including X-MOD, which features cross-modulation that creates FM and ring mod type effects, LATCH, based on the original Pitch Fork, but with enhancements to the Momentary mode functionality.
Features
- Dedicated volume controls for both Shift voices and the Dry signal
- Two outputs, Main and Aux, with multiple routing options
- 10 unique factory presets plus the ability to easily save/recall 100 programs
- Bypass footswitch
- Programmable user footswitch
- EXP input for EXP or CV control over a broad selection of parameters
- EXT input for connecting an external foot controller
- Eight modes, including X-MOD and LATCH
