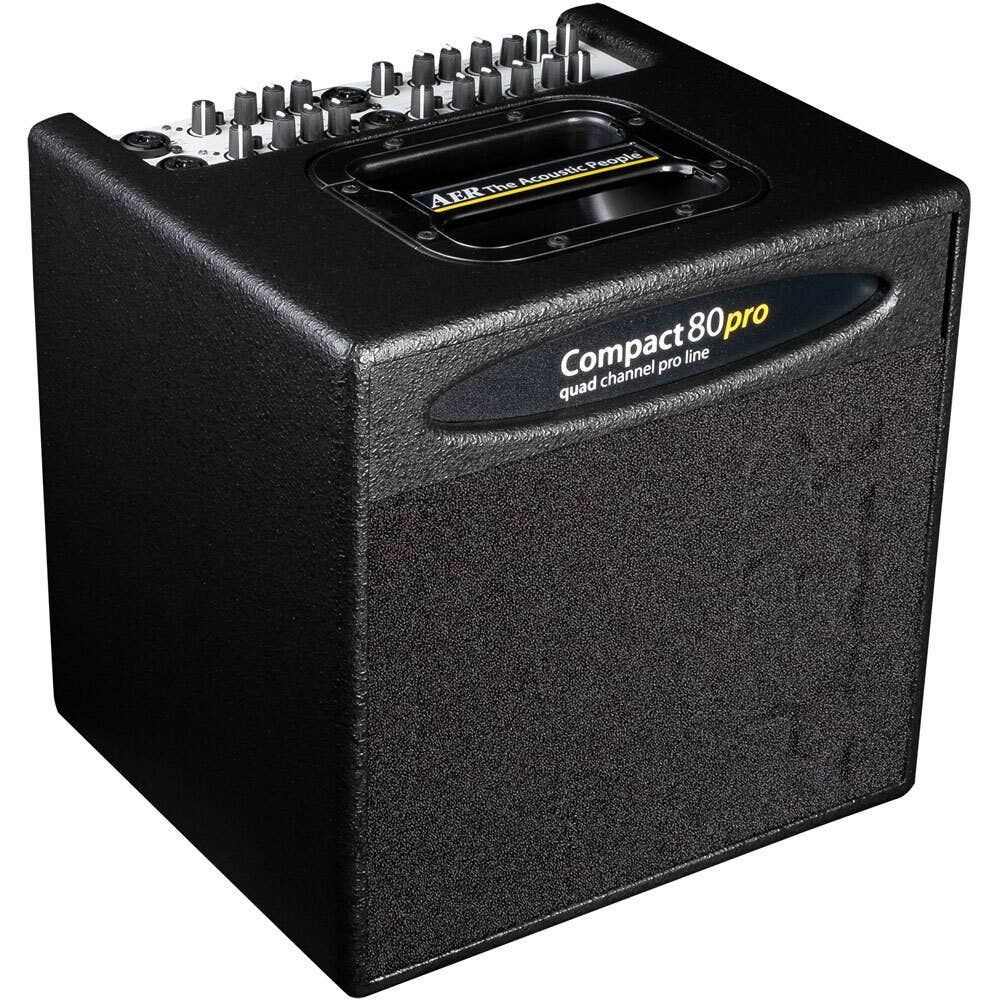

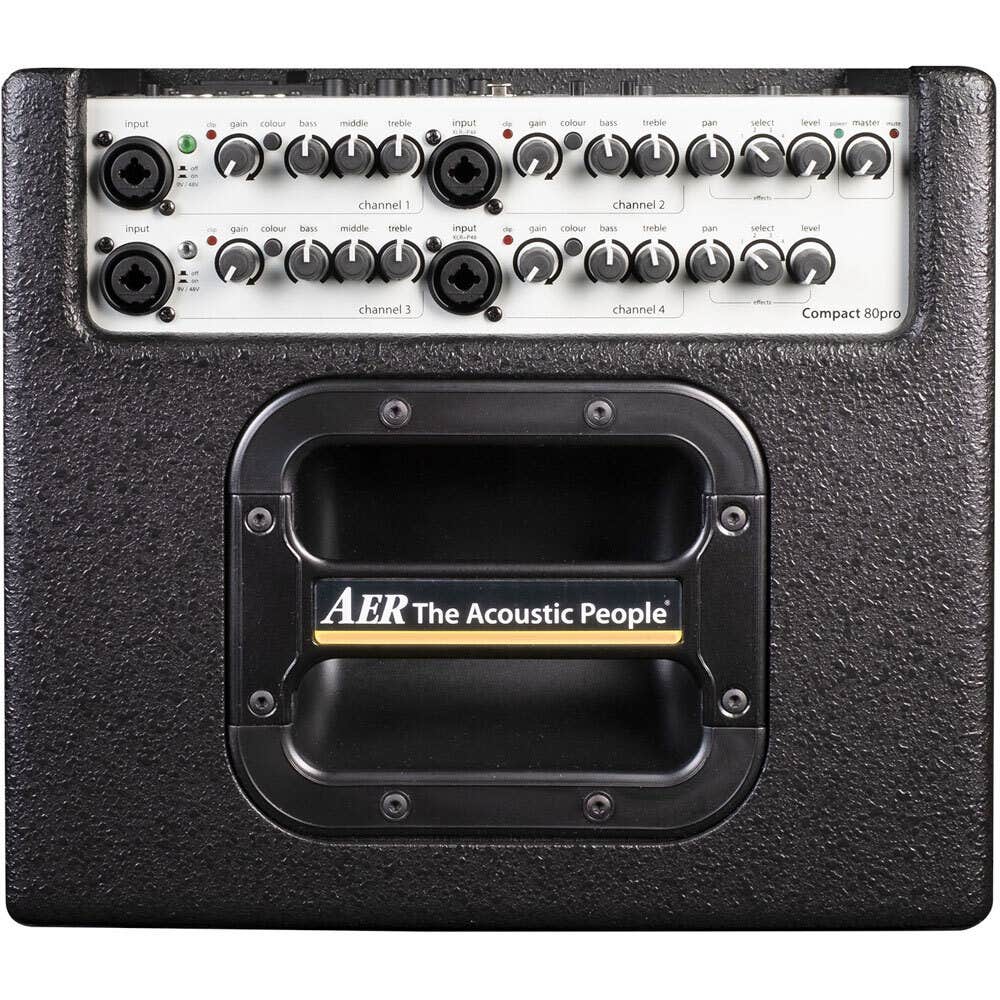

AER Compact 80 Pro Acoustic Instrument Amplifier

The Compact 80 Pro is the new amp in the AER range. More channels, more power, an innovative couple system for optimal cooperation in stage situations. Two DI outs for intuitive processing in FOH systems, all that with the simple and proven operation of all AER Compact systems.

FEATURES:

• Its innovative power amp design offers more headroom for all live requirements.
• Four channels for instruments and high-quality condenser microphones
• 8", 200mm AER Custom Twin Cone ensure additional expansion of the input signals and their implementation
• The adjustable AUX interface ensures safe PlayAlongs via CD or smartphone
• 2 x high-end DI-out to the FOH system
• 2 x 4 onboard effects. The effect portion can be mixed into two channels via the PAN control.
• At 10kg, it is still one of the easily portable amplifiers
• Comes with a padded gigbag
• 2-3 band EQ (centered)
• Couple function for monitoring a second amp
• Aux interface
• Recommended for: Acoustic guitar, voice, wind instruments, mandolins, oud, traditional Chinese instruments, mouth harp, but also electrical instruments.

SPECIFICATIONS:

• Channel 1: 6.3mm (1/4”) jack socket as high-impedance line input with pad (high/low attenuation) and switchable 9V phantom power, gain control
• Channel 2: Combined XLR/6.3mm (1/4”) jack socket as high-impedance line or balanced microphone input, 48V phantom power, gain control
• Channel 3: 6.3mm (1/4”) jack socket as high-impedance line input with pad (high/low attenuation) and switchable 9V phantom power, gain control
• Channel 4: Combined XLR/6.3mm (1/4”) jack socket as high-impedance line or balanced microphone input, 48V phantom power, gain control
• Equalizer: Three band tone controls for channel 1, 3 and two band tone controls for channel 2, 4, Mid-cut-treble-boost filter
• Effects: Two digital effect processors with 4 presets: 2 x reverb, delay, chorus
• Power amp: 80W / 8 ohms
• Analog signal processing
• Subsonic filter, low distortion processing RMS limiter
• Speaker system: 2-way speaker system, 8” (200mm) polypropylene low-midrange neodymium alloy magnets

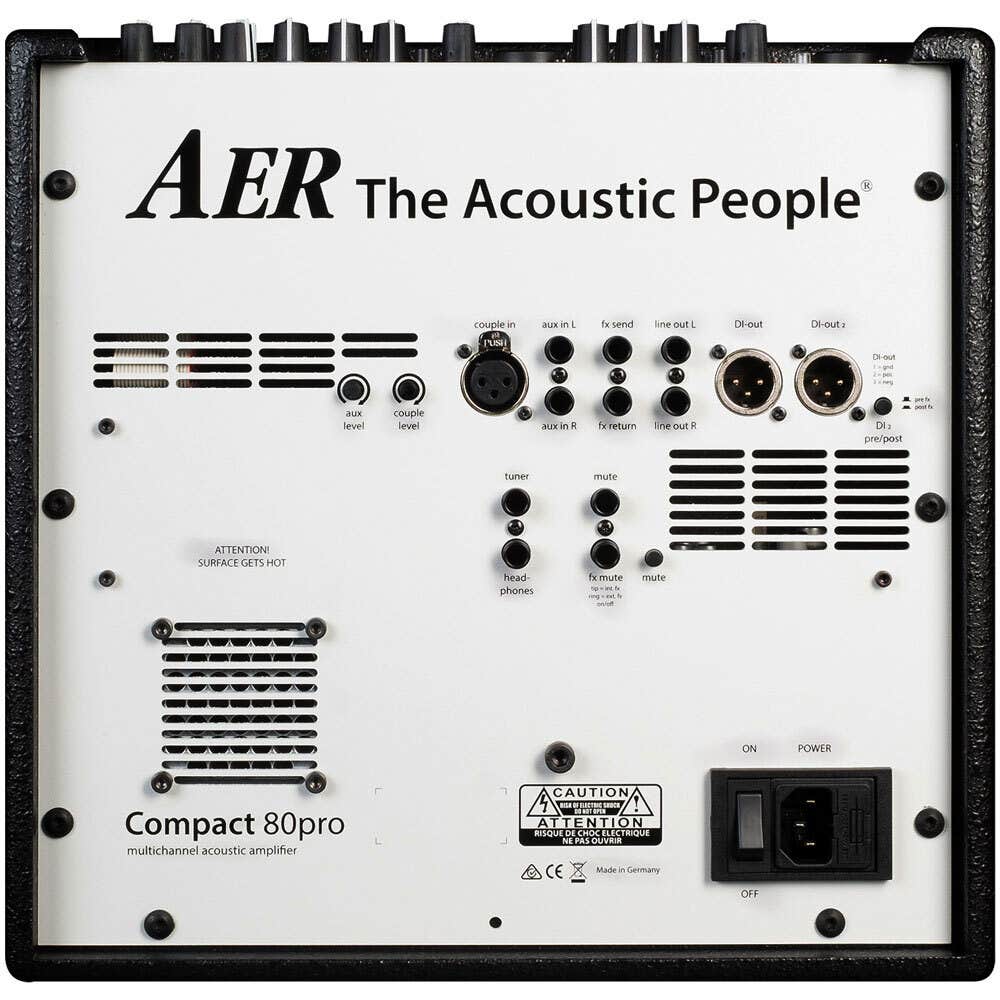

• Features: Couple-in, ground lift, switchable 9V phantom power, adjustable aux in, footswitch (effects on/off ), tuner, line out, adjustable DI-out, parallel effect loop, headphones
• Dimensions: Height: 320mm (12.6”) Width: 325mm (12.8”) Depth: 285mm (11.22”)
• Weight: 10kg (22 lbs)
