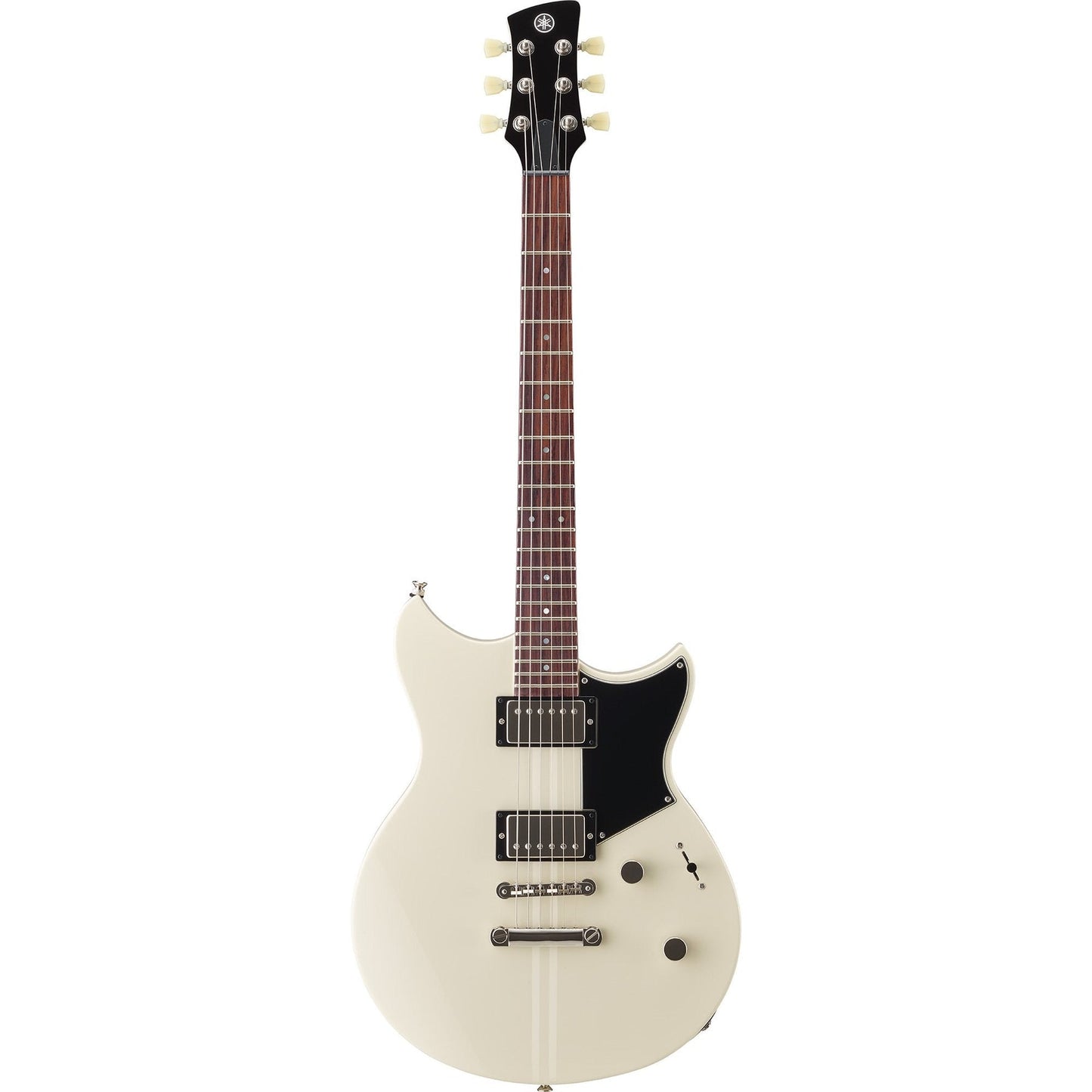

Yamaha Revstar Element RSE20 - Vintage White

Enquire For Stock

New 2022 Revstar Guitars from Yamaha are now available with three tiers, chambered bodies on every model, new racing-inspired finishes, new switching options, and left-handed models.

The RSE20 features five café racer-inspired finish options, a chambered body, dual Alnico V humbuckers, and a push/pull Dry Switch high-pass filter for additional tonal versatility.


  • Chambered bodies developed with Yamaha’s Acoustic Design process to enhance tone, reduce weight, and optimise balance
  • Simplified three-tier lineup with choice of humbucking or P90-style pickups on Professional and Standard models
  • Left-handed models available in the Standard and Element tiers
  • A completely new range of café racer-inspired gloss finishes

Chambered Bodies
Every new Revstar features a chambered body designed with Yamaha’s Acoustic Design process to sculpt tone and increase resonance while reducing weight and optimising balance.

Dry Switch
Revstar Element models feature our push/pull Dry Switch high-pass filter circuit that was first introduced with the original Revstar series.


Construction: Set-in
Scale Length: 24-3/4″ (628.6mm)
Body Materials: Chambered Mahogany
Body Finish: Gloss Polyurethane
Neck Materials: 3pc Mahogany
Neck Finish: Satin Polyurethane
Fingerboard Materials: Rosewood
Fingerboard Radius: 12″ (304.8mm)
Fret Wire: Jumbo
Number of Frets: 22
Neck Width @0 Fret / 12th Fret: 41.9 / 56.8 mm
Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
Nut Materials: High-Strength PPS
Neck Pickup: VH3n (Humbucker / Alnico V)
Bridge Pickup: VH3b (Humbucker / Alnico V)
Controls: Master Volume, Master Tone (Push-Pull “Dry Switch”)
Pickup Switch: 3-Position Lever Switch
Bridge: Tune-O-Matic
String Spacing: 10.5 mm
Tailpiece: Stopbar
Tuning Machines: Die-Cast
Pickguard: 3-ply (Black)
String Gauge: Elixir Nanoweb Light / 0.010-0.046
Case: Not Included
