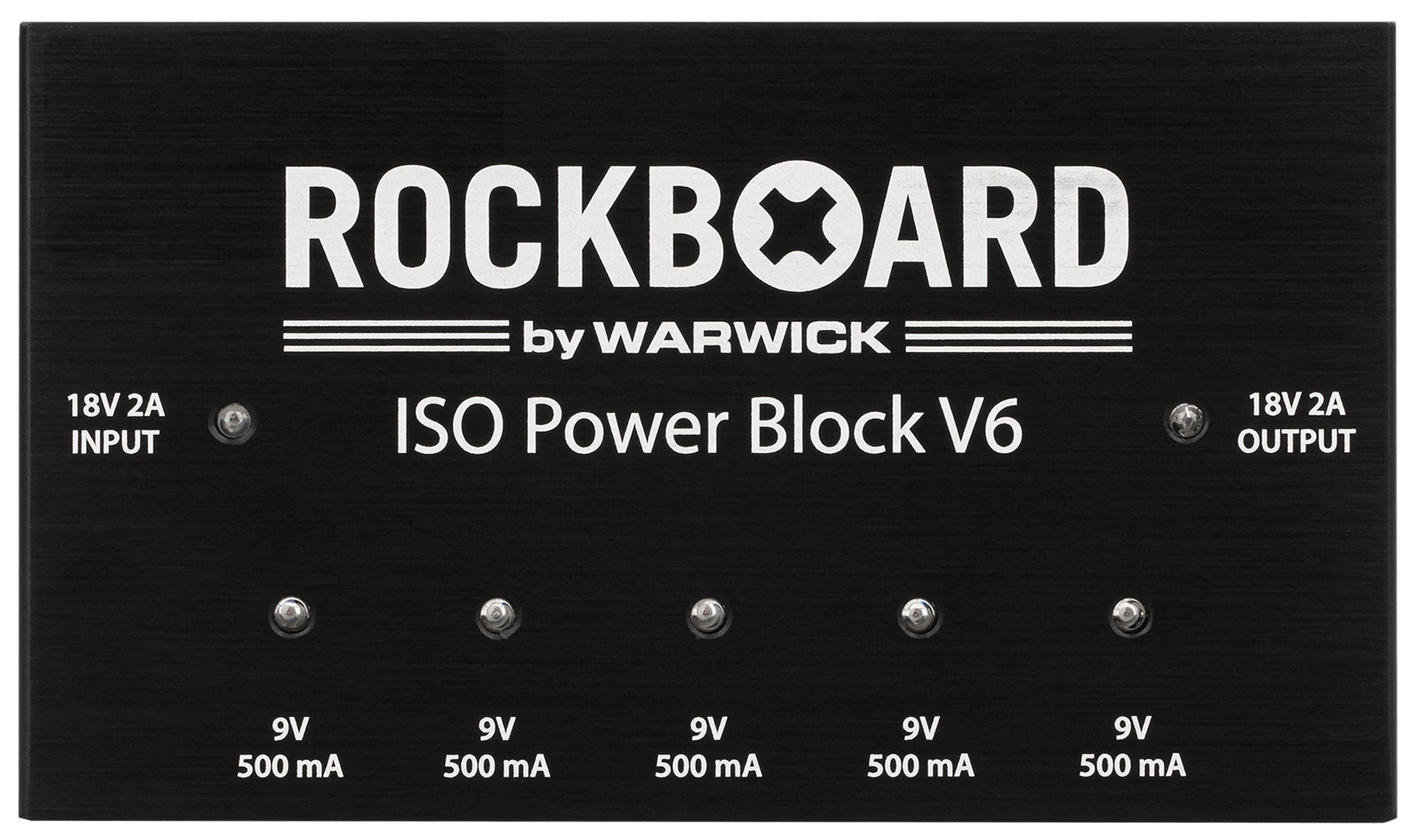

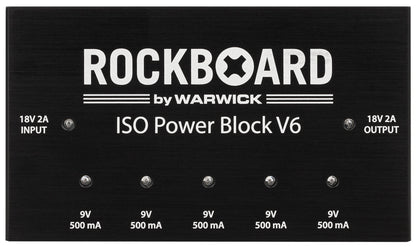

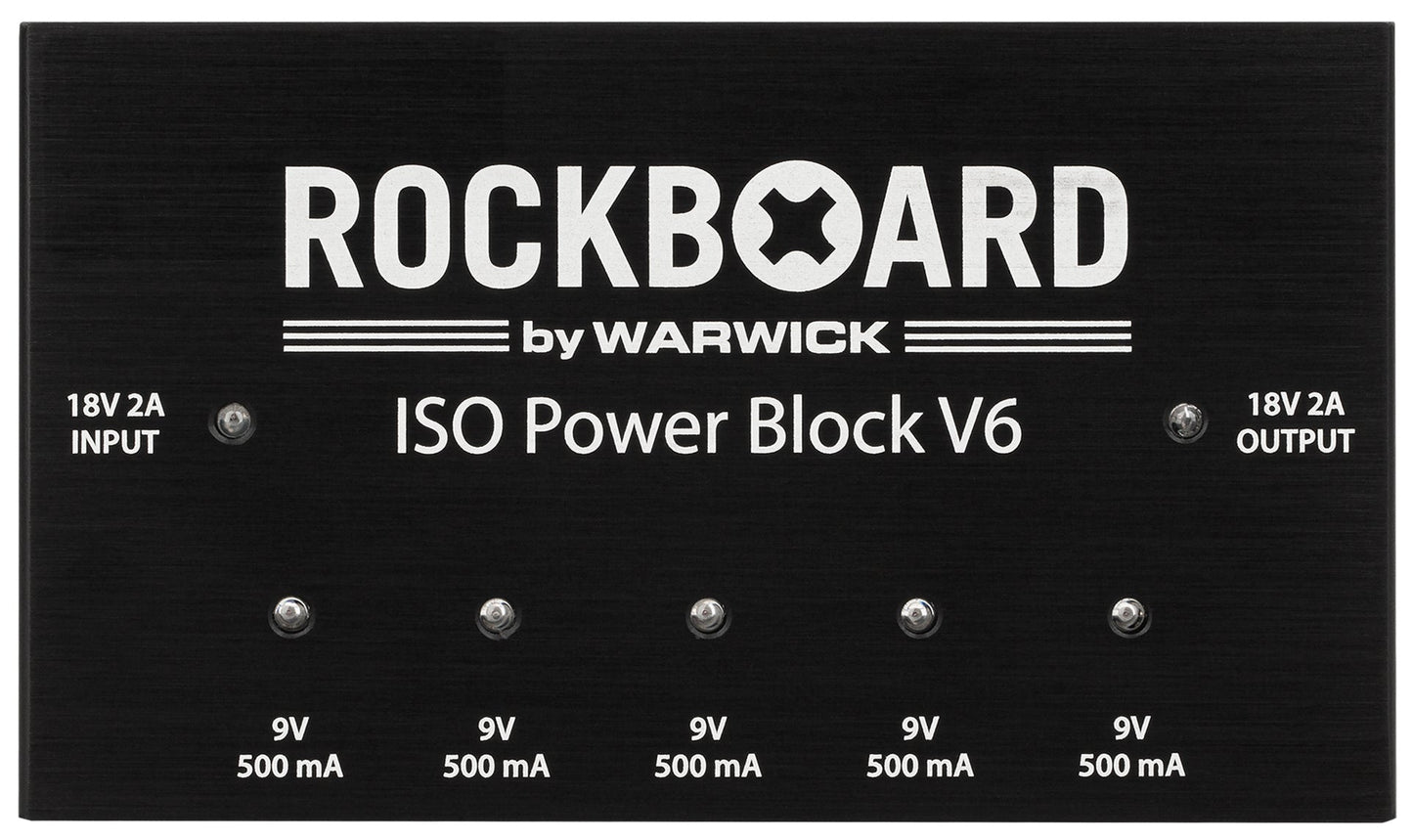

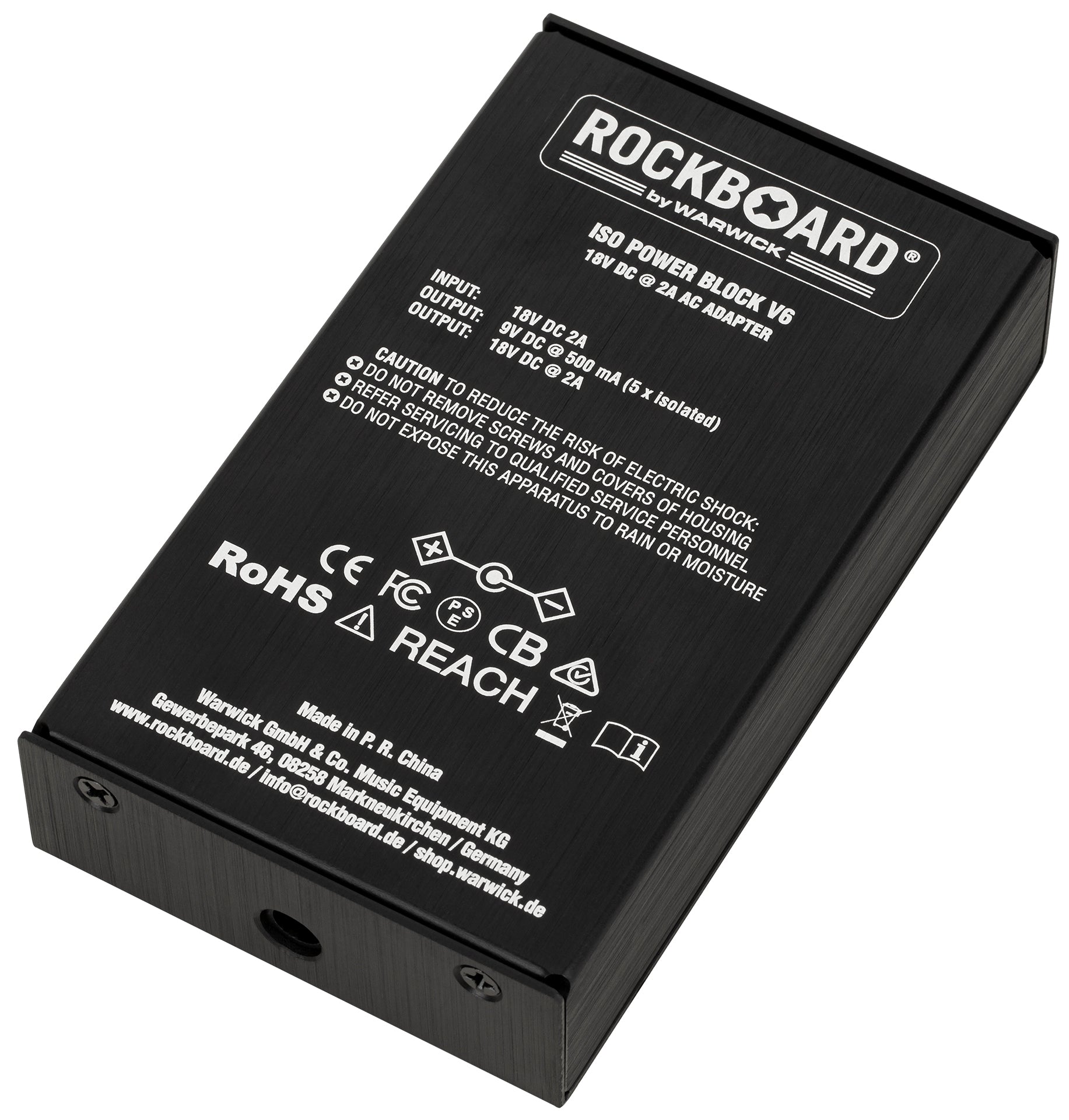

Warwick Rockboard Iso Power Block V6

The ISO Power Blocks (models 6, 6+, 10, and 16) are multi-power supplies for effect pedals. The V6 offers 6 electrically isolated, highly filtered power connections. These power supplies can simultaneously provide noiseless power to multiple effects pedals. They feature advanced filtering technology to eliminate high-frequency noise and individual short-circuit protection for each power slot. If a short circuit occurs, only the affected slot is turned off, ensuring the rest of the effects rig remains operational.

FEATURES

• Multi-power supply for effects pedals
• 5 transformer isolated and highly filtered power slots
• 18V DC link output to connect multiple ISO Power Blocks V6 in series
• Designed for powering up to 5 effects pedals simultaneously without any noise
• Advanced filter technology prevents high frequency noise
• External transformer prevents low frequency interference
• Total output power: 22.5 W (2,500 mA)
• 5 x 9V DC, 500 mA each, 2.1 x 5.5 mm barrel plug, polarity (-) center
• 1 x 18V DC, 150 mA each, 2.1 x 5.5 mm barrel plug, polarity (-) center
• Individual status LEDs and short circuit protection for all power slots
• Input voltage 18V DC

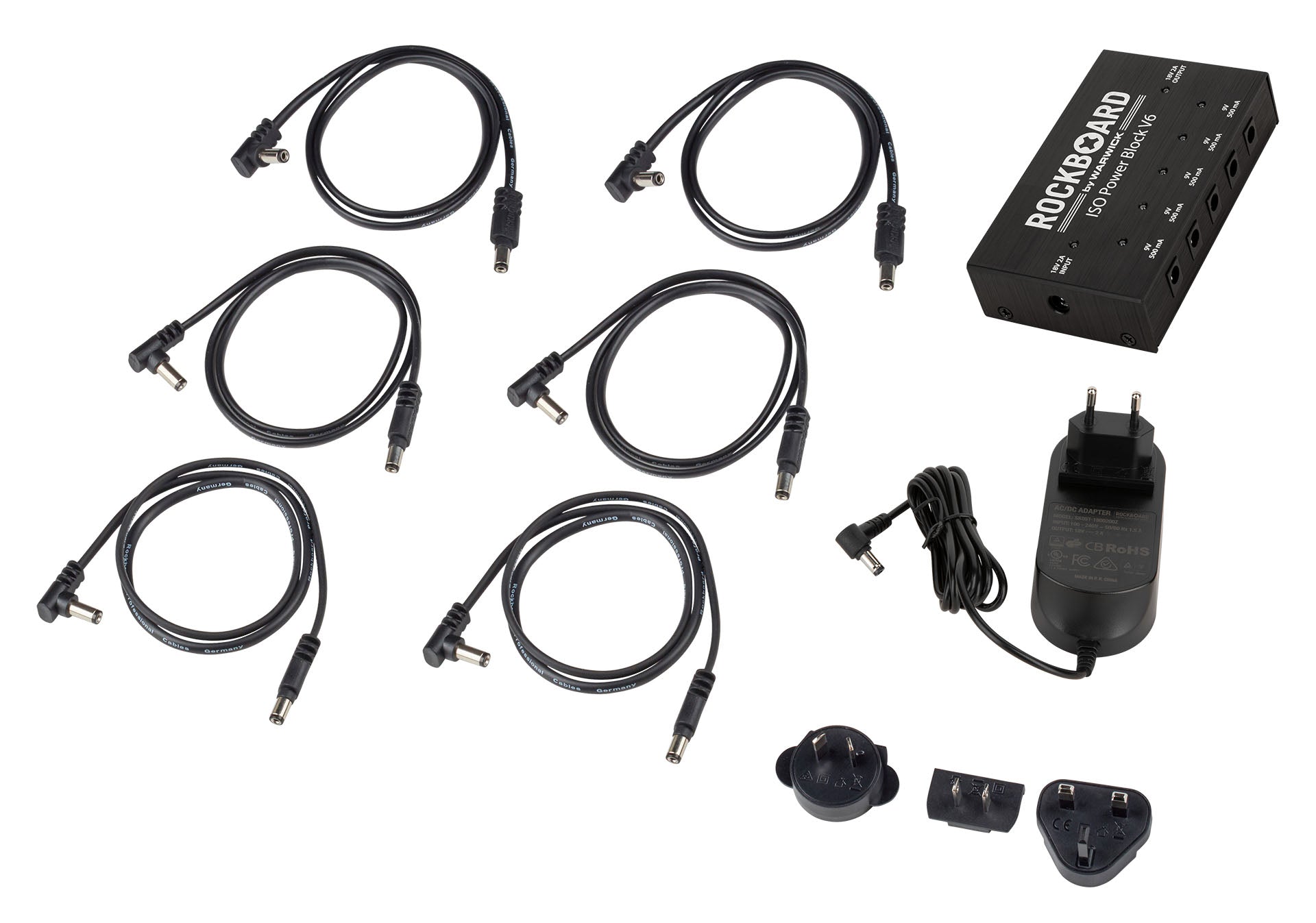

• Includes 1 x 18V DC power adapter (2,000 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
• Includes 6 x RockBoard Flat Power Cable, 60 cm (for connecting effects pedals)
• Dimensions (L x W x H): 120 x 70 x 25 mm / 4 23/32" x 2 3/4" x 63/64"
• Weight: 175 g / 0.38 lbs
