HUGHES & KETTNER

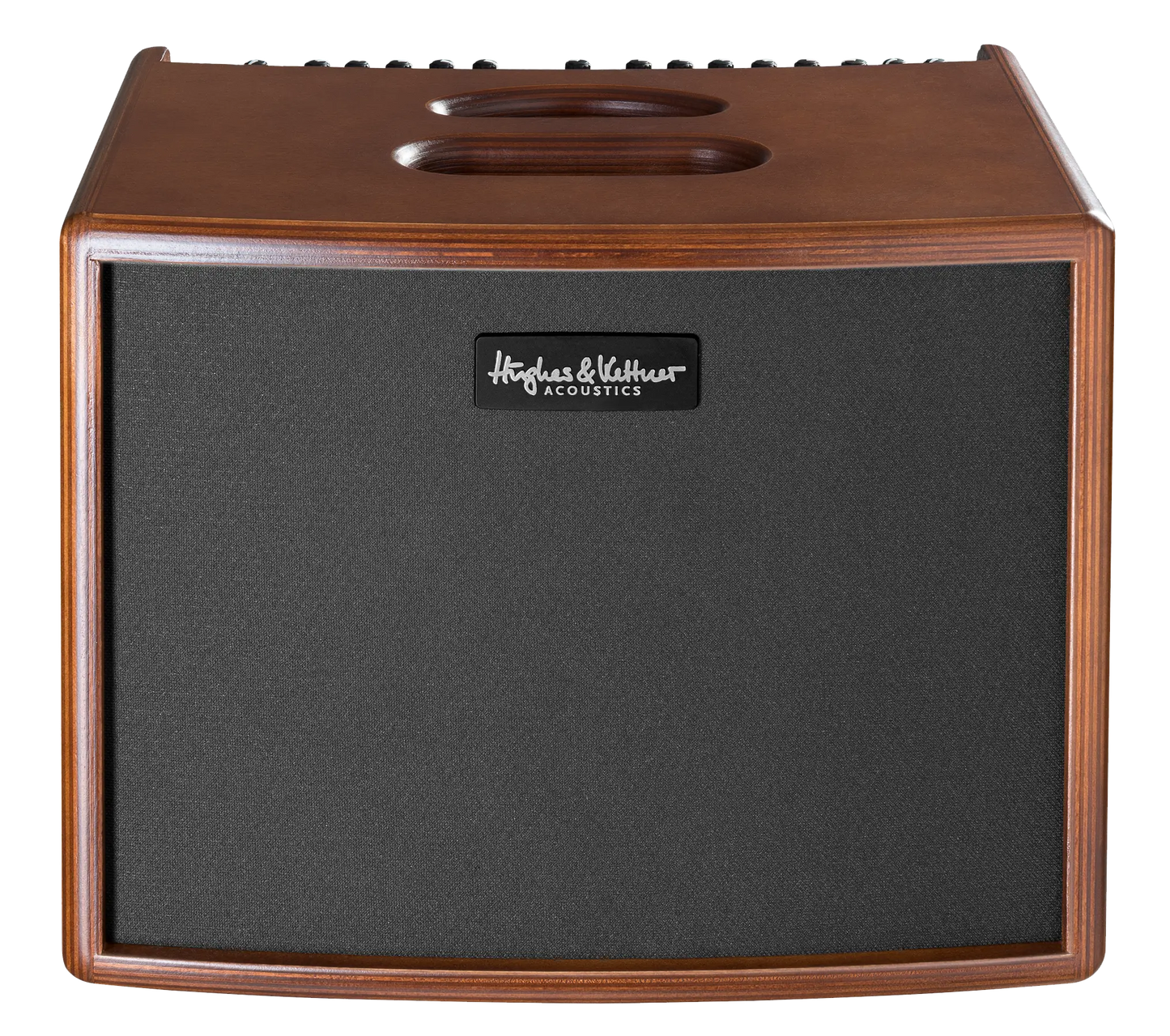

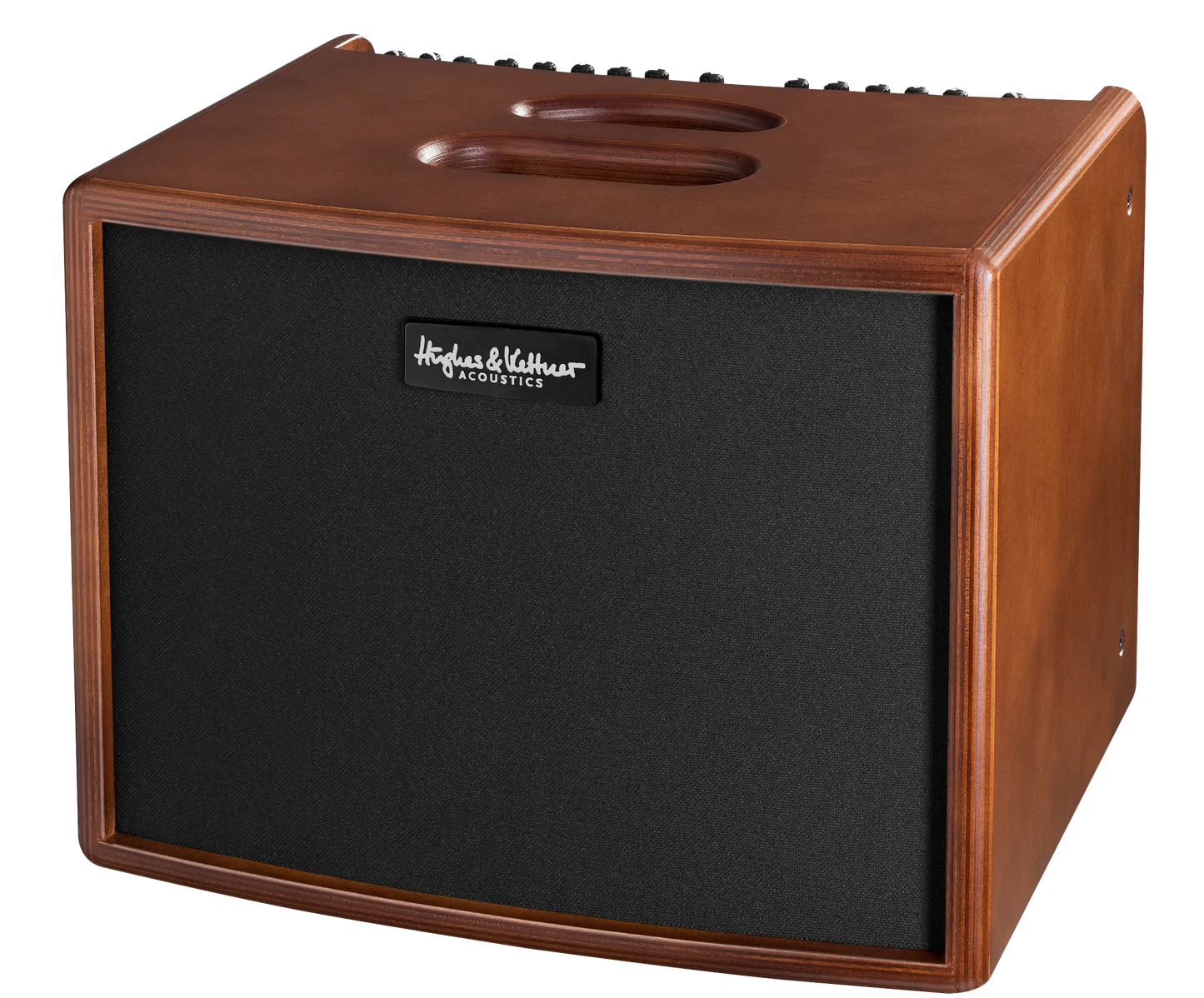

Hughes and Kettner ERA 1 Acoustic Amp
1007612ERA 1
Welcome to a new era of acoustic amplification. Developed with renowned designer Michael Eisenmann, era 1 gives you richly detailed definition for peerless authenticity and tonal brilliance, plus a bunch of remarkably innovative and intuitive features to make every performance better. On top of all this, era 1 is built in Germany to the highest quality standards.
HIGH-DEFINITION AUDIO
- Painstakingly selected, top-drawer components
- Excellent preamps
- Premium-quality AD/DA converters
- Custom-made power amp with massive headroom
INTUITIVE HANDLING WITH ZERO COMPROMISES
- Two fully featured, identical channels
- Independent FX engine for each channel with 16 programs
- Very effective Preshape and Mode buttons to voice channels to suit different instruments and vocal registers
- As compact and light as conventional 60-watt combos
CHANNELS
4
NOTCH FILTER
40 – 180 Hz
EQ
3-Band-EQ, 2 Modes switchable
INTERNAL FX
16 FX-Programms (Reverb, Chorus, Flanger, Delay, Combinations), FX parameters adjustable
SWITCHES CH 1 / CH 2
-10 db; Shape; Mute
CONTROL
Master Volume, Gain
TILT STAND (INCLUDED)
25° / 35°
POLE MOUNT
35 mm
PROTECTIVE COVER (INCLUDED)
paddedHARDWARE
POWER AMP
250 watts
SPEAKER MID/LOW
1X8″ Custom made
SPEAKER HIGH
1×1″ Dome Tweeter
FOOTSWITCH HUGHES & KETTNER FS-2 (OPTIONALLY AVAILABLE)
Switching functions: Amp mute, internal FX mute
DIMENSIONS
350 x 285 x 290 mm,
WEIGHT
9,85 kg / 21,7 lbs (wood),
10,75 kg / 23,7 lbs. (black)CONNECTIVITY

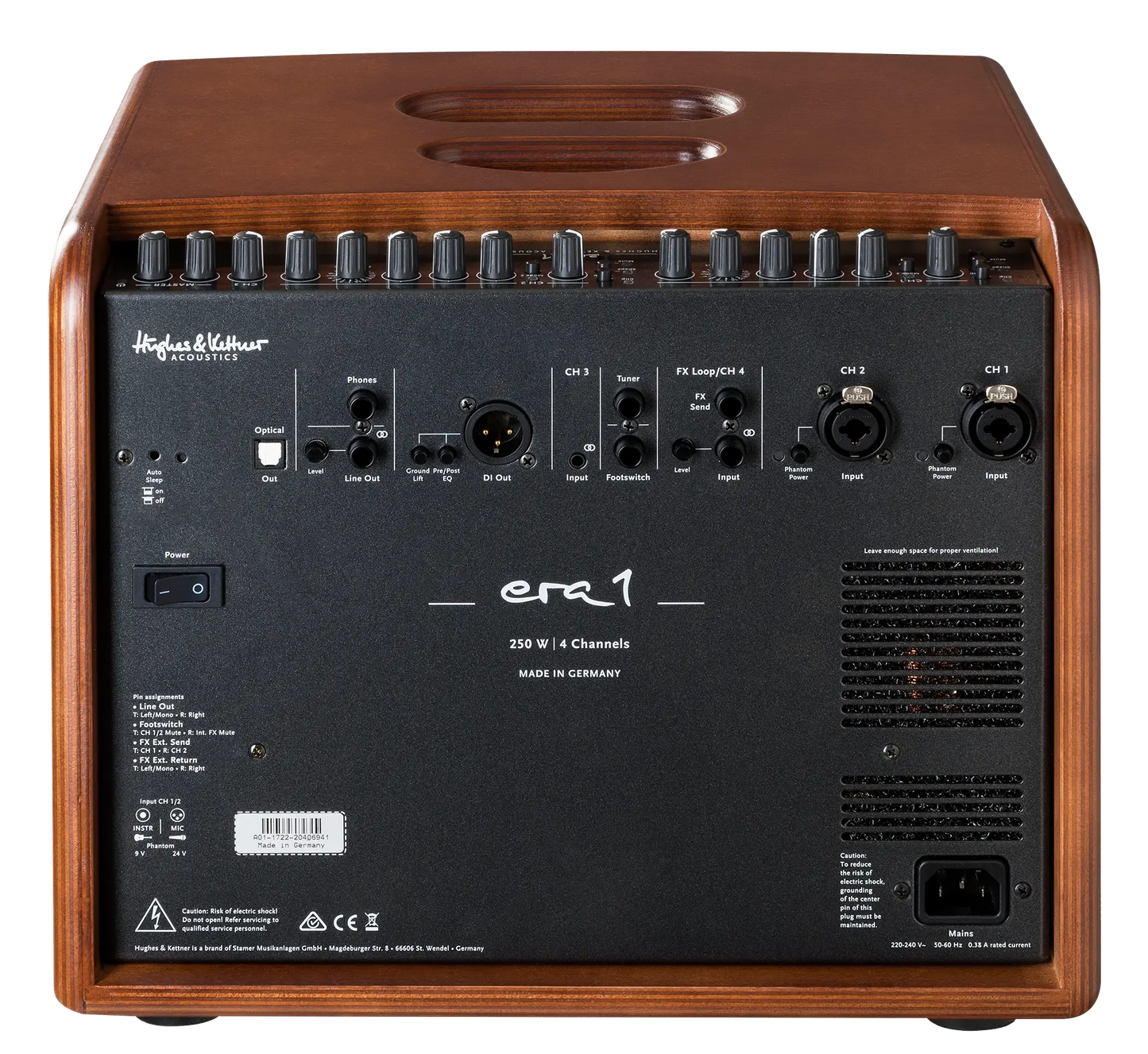

INPUT CH 1 / CH 2
High Resolution Mic and Instrument Input (XLR/6,3mm (1/4″) combo jack – Phantom Power switchable))
INPUT CH 3
Aux In: 3,5 mm (Mini Jack Stereo-Input; adjustable
INPUT CH 4 / FX RETURN
6,3 mm (1/4″) Stereo-Input; adjustable
DI-OUT
XLR; Pre/Post EQ switchable; Ground Lift switchable
LINE-OUT
6,3 mm Stereo Output; adjustable
PHONES / LINE JACK
3.5 mm stereo, 50 Ohms
AUX INPUT
6,3 mm Stereo Headphones Out
TUNER
6,3 mm Mono Tuner Out
OPTICAL RECORDING OUT
S/PDIF TOSLINK, optical
