Guild

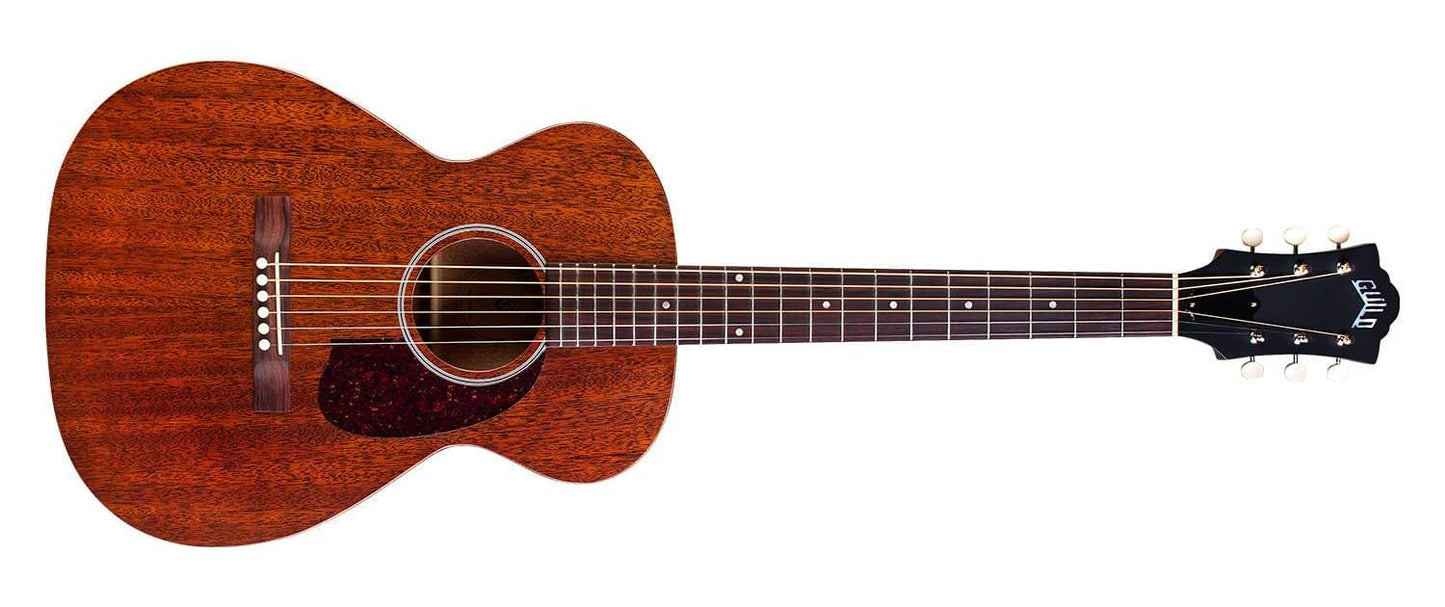

GUILD USA M-20E SOLID CONCERT WITH CASE AND PICKUP

GUILD-M20E
Enquire For Stock
*PLEASE CONTACT STORE FOR AVAILABILITY*

Guild’s iconic M-20 was the first guitar off the production line in 1967, when the company had grown so much that they relocated to a new factory in Westerly, RI. Nearly 50 years later, history has repeated itself in a brand new, state-of-the-art facility in California. The M-20 is a concert size acoustic guitar built with solid mahogany top, back, and sides, informally nicknamed “the Nick Drake guitar” for its inclusion on the album art for Drake’s album, Bryter Layter. It features a rosewood bridge and fingerboard, bone nut and saddle, and an extremely light satin finish that allows this guitar to truly sing. The M-20’s modest appointments include a vintage style rosette and Guild’s peak logo inlaid in mother-of-pearl on the headstock. Each M-20 comes with a hand-signed, numbered certificate of authenticity, and ships with a hardshell case. Available in Natural, Vintage Sunburst, Natural with LR Baggs pickup (M-20E Nat), and Sunburst with LR Baggs pickup (M-20E VSB).

SPECS:

Body
Body Shape M - Concert
Body Top Solid African Mahogany
Top Bracing Pattern Scalloped X
Soundhole Diameter 3 11/16" (93mm)
Rosette ABS Ring
Top Purfling Inlay N / A
Top Binding N / A
Body Sides Solid African Mahogany
Side Purfling Inlay N / A
Body Back Solid African Mahogany
Body Binding N / A
Neck
Neck Material Mahogany
Scale Length 24 3/4" (628mm)
Neck Shape C Shape
Nut Width 1 3/4" (44.5mm)
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 22.5mm
Truss Rod Single Action
Truss Rod Wrench 8mm Socket Wrench
Fingerboard Material Indian Rosewood
Fingerboard Radius 12" (305mm)
Fingerboard Inlays Pearloid Dots
Frets Total 20
Fret Type Jescar 43080
Finish
Color Natural (NAT)
Finish Satin Polyurethane
Finish - Top Satin Varnish
Finish - Back and Sides Satin Varnish
Finish - Neck Satin Varnish
Hardware
Bridge Material Indian Rosewood
Bridge String Spacing 2 1/4" (57mm)
Bridge Pins Ivory Colored Plastic
Saddle Material Compensated Bone
Hardware Finish / Plating Nickel Plated
Nut Material Bone
Endpin Ivory Colored Plastic
Pickguard Tortoiseshell
Electronics
Electronics LR Baggs VTC electronics
Other
Strings D'Addario EXP16 - Coated Phosphor Bronze Light (.012 - .053)
Included Case Guild Deluxe Humidified Wood Case
Upper Bout Width 10 1/8" (257mm)
Lower Bout Width 13 3/4" (350mm)
Body Depth Upper Bout 3 1/4" (83mm)
Body Depth Lower Bout 4 1/8" (105mm)
Body Length 18" (457mm)
Overall Length 38 3/4" (984mm)
