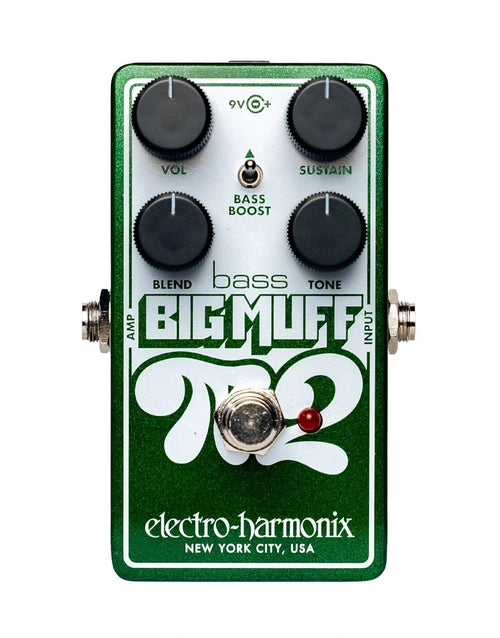

Electro-Harmonix Nano Bass Big Muff 2 Analogue Fuzz Pedal
690/NANOBBMF2Couldn't load pickup availability
The Electro-Harmonix Bass Big Muff Pi 2 is an analogue fuzz, distortion and sustainer pedal for bass players who want heavy Big Muff character without losing the weight of the instrument. Its circuit uses two dual op-amps, giving it a distinct voice with midrange grind, flexible EQ and the long sustain players expect from a Big Muff-style fuzz.
The control set keeps the familiar VOL, Tone and Sustain layout, then adds bass-focused tools to help the sound sit properly in a band mix. The Blend knob mixes dry and fuzz signals, so you can dial in distortion while keeping note clarity and low-end foundation. The Bass Boost switch adds extra low-end impact, especially when the Tone control is set brighter.
The footswitch supports both latching and momentary operation, letting you click for standard on/off use or press and hold for short bursts of fuzz. Mechanical relay true bypass keeps the signal path practical when the pedal is off.
FEATURES / SPECIFICATIONS
| Specification |
|---|
| Unique Big Muff Pi circuit design employing 2 Dual Op-Amps |
| Added features optimised for extended low-end |
| VOL, TONE, and SUSTAIN controls |
| BLEND knob sets wet/dry mix |
| BASS BOOST adds more overall low-end to your signal |
| True Bypass |
| Latching/Momentary footswitch action |
| Mechanical relay true bypass on a soft footswitch |
| 9V Battery included, adapter optional |
| Circuit: Analogue |
| Audio: Mono |
| Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included) |
| Dimensions: 114mm (4.5") x 70mm (2.75") x 53mm (2.1") |
| Current Draw: 20mA |
