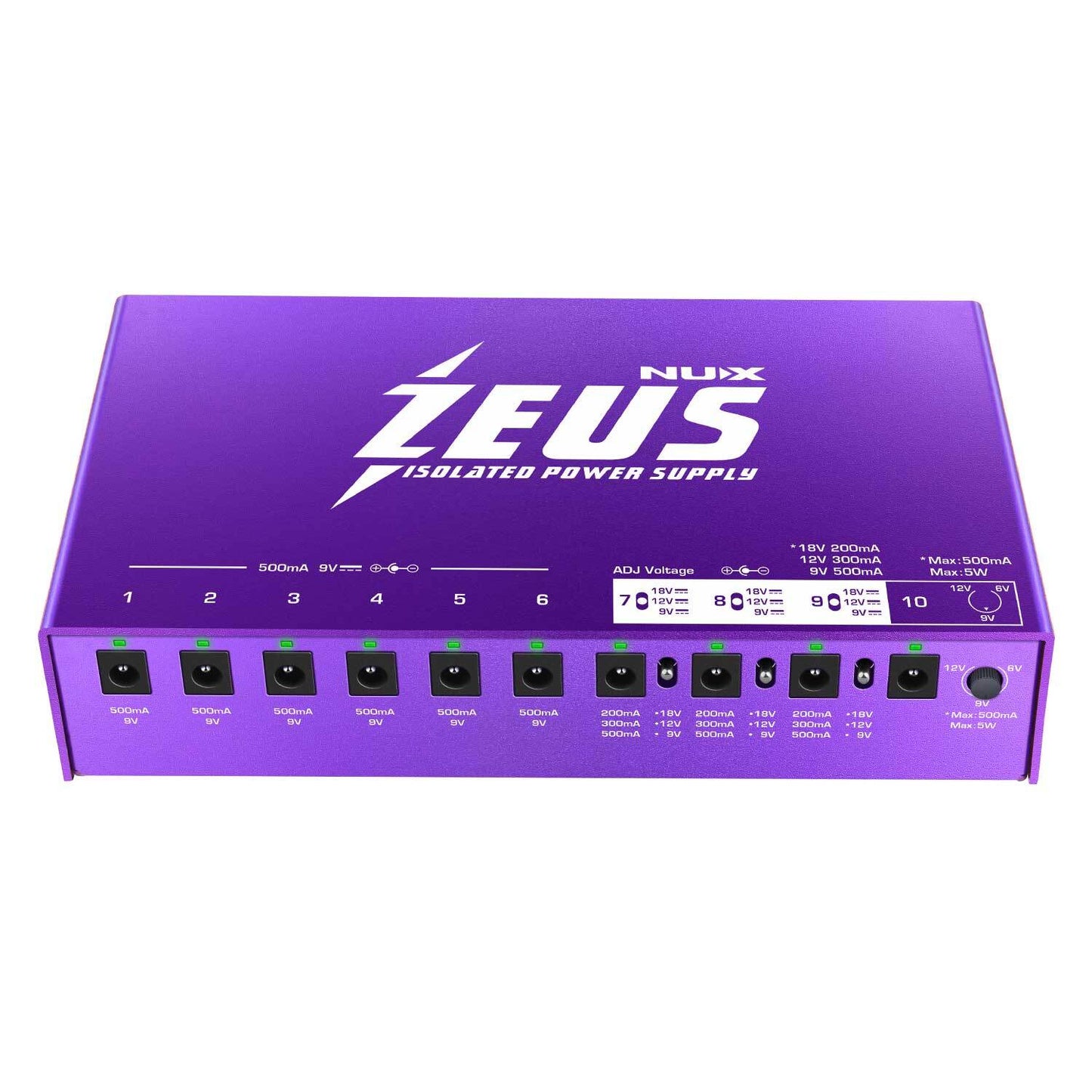

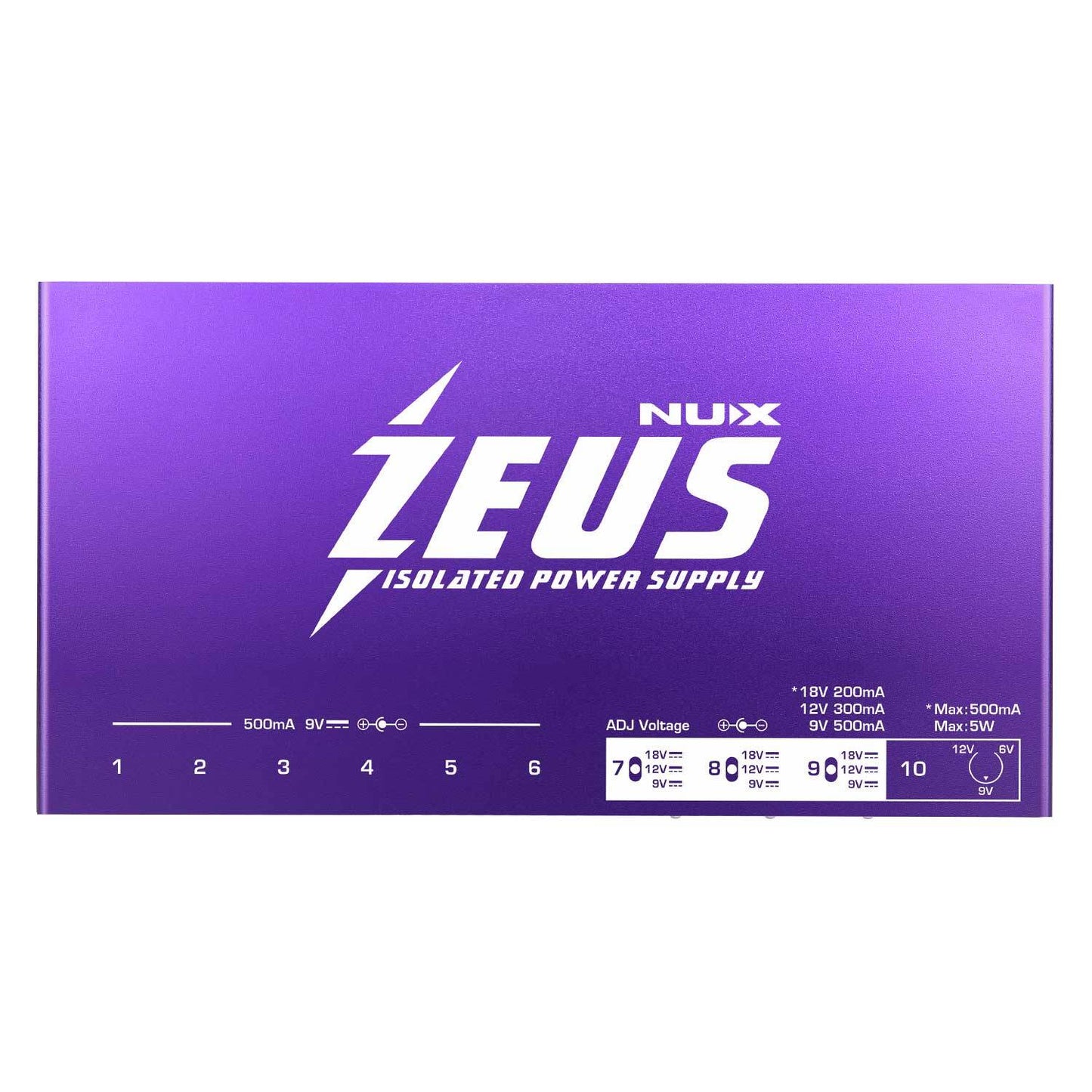

NU-X Zeus Z10 Isolated Variable Power Supply

The Z10 features six 500mA, 9V outputs, suitable for almost any analogue or digital stompbox-style pedal, along with four additional, switchable outputs. Three of these can be used at 18V, 12V, or 9V, making them ideal for high-headroom pedals like boosts and some digital delays. The final output integrates a tweakable output control, designed for those true tone-chasers! Some pedals react differently depending on the voltage available, and tweaking the dial between 6V-12V (with a maximum of 500mA output) can yield some incredible tonal and dynamic results, particularly for old-school Germanium Fuzz and overdrive pedals.

The Tech Features

Brand: NUX

Model: Zeus NIP-Z10

Power Input: 100-240V

Power Outputs:
- 6X 9V, 500mA
- 3X Switchable 9/12/18V, 500/300/200mA
- 1X Tweakable 6-12V, 500mA max.
- 1X USB 5V, 1.5A

Dimensions: 195 x 101 x 42mm / 7¹¹⁄₁₆” X 4" X 1⁵⁄₈”
